Product Features

• Introduction
• 1. The INLINE 6 can communicate with your PC through a 9-pin serial connector. The INLINE 6 also can communicate with your PC over a Universal Serial Bus (USB) through a 4-pin standard connector. The INLINE 6 adapter connects to vehicle power, the SAE J1708/J1587 data link, and two CAN/J1939 data links via a 25-pin serial connector.
• 2. With full compliance to the Technology and Maintenance Councils RP1210 standard, the INLINE 6 will work with the latest Cummins INSITE, PowerSpec and Calterm III software applications.
• 3. It will also work with any other software applications that are fully compliant with the RP1210 standard (note that while some non-Cummins applications fully support RP1210, others do not, so you should test each application in question with the INLINE 6 adapter to make that determination).
• 4. The eye-catching INLINE 6 breaks new ground by utilizing the latest electronic technology to deliver high performance and high quality at an attractive price.
• 5. Each Cummins INLINE kit contains a data link adapter, basic cables, and the INLINE PC software driver. Load the software driver, connect all the hardware, and you are ready to start a new era in data link adapters.
• Feature
• 1. Supports SAE J1708/J1587 and J1939/CAN data links
• 2. Both CAN ports auto detect between 250 & 500 kbps
• 3. Supports USB full speed port at up to 2M baud rate
• 4. Custom USB cable includes thumbscrews for secure mounting to INLINE 6
• 5. Supports RS-232 PC serial port at up to 115.2k baud rate
• 6. Is fully compliant with TMCs RP1210 standard
• 7. Small enough to fit in pocket
• 8. Attractive black powder coated aluminum housing provides ruggedness
• 9. Derives 8 V to 50 V DC power from vehicle
• 10. Controlled by advanced 140 MHz 32-bit Freescale processor for maximum speed and performance
• 11. Includes 6 LEDs to indicate status of power, USB, RS-232, J1708/J1587, and two CAN communication ports
• 12. Both CAN ports support SAE J1939, SAE J2534, and ISO 15765 protocols
• 13. INLINE 6 is certified to meet European CE requirements
• 14. Rated for -40to +85 degree Celsius operating temperature
• 15. INLINE 6 meets rigorous Cummins in-cab environmental test requirements
• 16. Language: English, Hungarian, Polish, Czech, Indonesian, Portuguese, German, Italian, Romanian, Danish, Japanese, Russian, Greek, Korean, Swedish, Spanish, Netherlands, Turkish, Finnish, Norwegian, Chinese

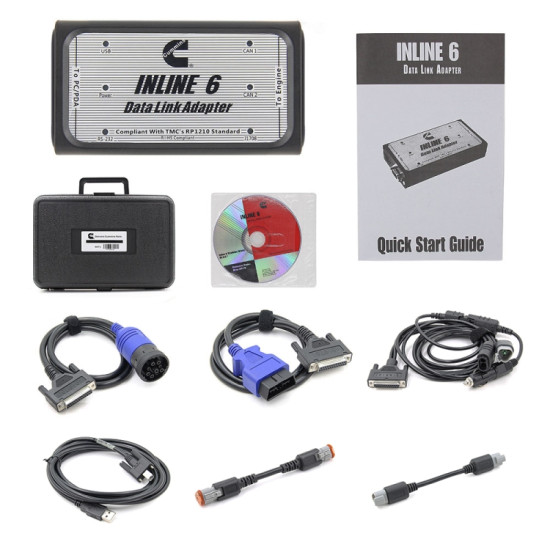

• Package List
• - INLINE 6 data link adapter (P/N 2892093) x 1
• - USB 14-foot?? cable (P/N 2892176) x 1
• - DB25F/9-pin data link cable (P/N 4919780) x 1
• - DB25F/3-pin/3-pin/2-pin cable (P/N 4919797) x 1
• - J1939 Gender Changer adapter (P/N 3163597) x 1
• - J1939 Backbone adapter (P/N 3163096) x 1
• - ObdII cable?? (P/N 4919781) x 1
• - Komatsu 12 pin cable x 1
• - INLINE 6 software CD (P/N 2892095)?? Include Insite 7.6.2 + keygen x 1
