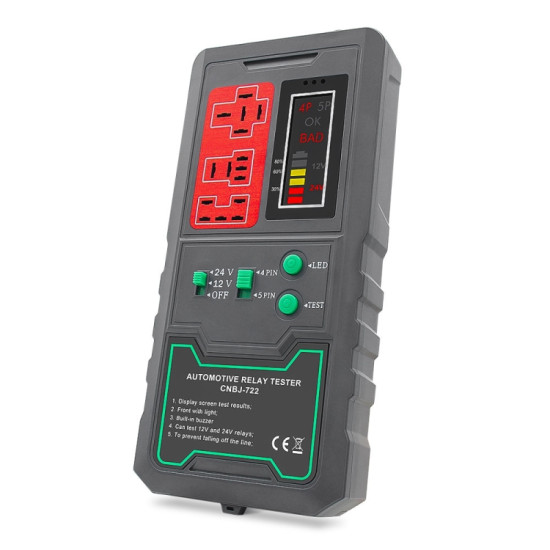

Product Features

• 1. Material: ABS
• 2. Application range: 12V/24V automotive relay
• 3. LED high-definition display, can be operated in dim environment
• 4. Lighting design, no fear of the night, more convenient to detect automotive relays, just one button to turn on
• 5. This product is mainly used to detect whether the automotive relay is normal
• 6. Size: 97x27x200mm
• 7. Note: The product requires 18650 batteries x2, and the battery is not shipped!
• Instructions:
• 1. Install 2 batteries into the instrument (according to the instructions), and do not invert the positive (+) and negative (x) poles of the batteries
• 2. "OFF / 12V / 24V" is the 12V relay and 24V relay selection key; after the power button is turned on, the current battery power will be displayed immediately (if the battery power is insufficient, please charge it in time); and there is a 12V/24V relay selection; select the voltage volts of the corresponding automotive relay to test
• 3. "4 PIN / 5 PIN" is the four-pin and five-pin key; select the four-pin and five-pin under the automotive relay to be tested (usually these two pins), if there are special pins, it cannot be tested
• 4. "TEST" is the test key; select the corresponding relay type (12V or 24V), pin (4 PIN or 5 PIN), when the test button is pressed, the instrument will open and close 10 times for detection, and end when a buzzer sound is heard; and the display area will show "OK" or "BAD", which means "OK" means the relay being tested is good; "BAD" means the relay being tested is bad (analyzed based on the length of time it takes to be released)
• 6. After using the instrument, pull the switch to "OFF" to turn off the power, remove the relay
