Product Features

• Functions

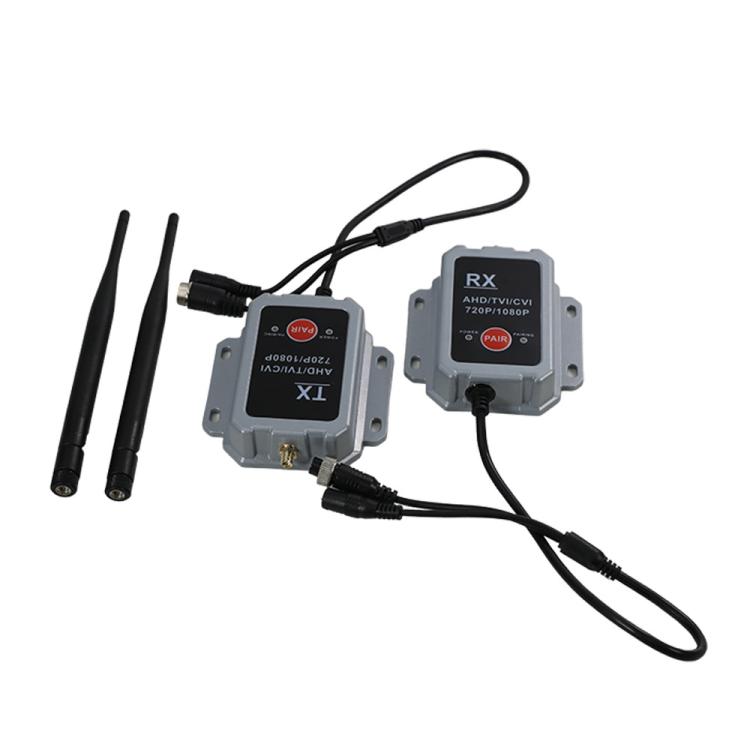

• AHD wireless transmitter receiver, suitable for wired truck camera transmitter up to 1080P panoramic wireless set, wireless working distance 200-300 meters. Mainly used for long-distance trucks, camping trailers, trucks with trailers.
• Support AHD/TVI/CVI signal input and output (transmitter supports 720P, 1080P, CVBS signals, receiver video output is AHD 720P PAL). 12V-36V working voltage, suitable for different vehicles.
• Features
• 1. Wireless transmitter and receiver for wired cameras
• 2. Can transmit 1080p AHD/HDCVI/HDTVI CVBS signals
• 3. Wide signal coverage, wireless distance up to 200-300m
• 4. Will make adding cameras to trailers simple and installation time shorter
• 5. Perfect for trailers, RVs and any two-piece equipment
• 6. Heavy-duty weather-resistant and waterproof design, no fear of bad weather such as rain and snow
• 7. The receiver output of the monitor is 720p PAL format
• Parameters
• 1. Power input: 12V-36V
• 2. RF band: 12Mbps
• 3. Frequency: 2400-2483.5 MHZ
• 4. Modulation: QPSK/16QAM
• 5. Working distance: 200-300m
• 6. Receiving sensitivity: -86dBm QPSK
• 7. Jump rate: 1200/S
• 8. Resolution: 1080P 25F/S
• 9. Compression code: H.264
• 10. Maximum delay: 100ms
• 11. TV mode: PAL/NTSC
• TX Video AHD/TVI/CVI 1080P
• RX Video AHD/TVI/CVI 720P (1080P is not recommended because the image is unstable and there will be freezes)
• 12. Operating temperature: -20 to +80 degrees Celsius
• 13. Operating humidity: 85% relative humidity
