Product Features

• 1. Rated voltage: 24DCV
• 2. Working voltage: 12DCV-36DCV
• 3. Power consumption: 4W
• 4. Detection distance: 0.3m~3.0m
• 5. Alarm distance: 0m~3.0m
• 6. Sensor angle: X/Y/30 degrees
• 7. Number of sensors: 128
• 8. Display resolution: 1024x600 (HD)
• 9. Camera pixel: 720P
• 10. Display screen size: 7 inches
• 11. Error: -5mm, +2mm
• 12. Sensor connector: Aviation connector
• 13. Working temperature: -30~+80
• 14. Alarm type: Buzzer beeping
• 15. Alarm volume: 65dB
• 16. Sensor size: 26mm
• 17. The communication between the host, probe, display and AHD digital video radar is a digital working mode. Probes and wires can be added according to the length of the vehicle model to cover any blind spot you want to observe
• 18. Triple protection of working distance + image + alarm distance, working as soon as the power is turned on, the radar works when there are reverse, brake and turn signal signals, and the sound alarm is based on the closest distance
• 19. Applicable models: trucks, buses, public buses, fire trucks, mud trucks, excavators and other engineering vehicles
• 20. AHD digital visual radar image, AHD display, 360-degree detection

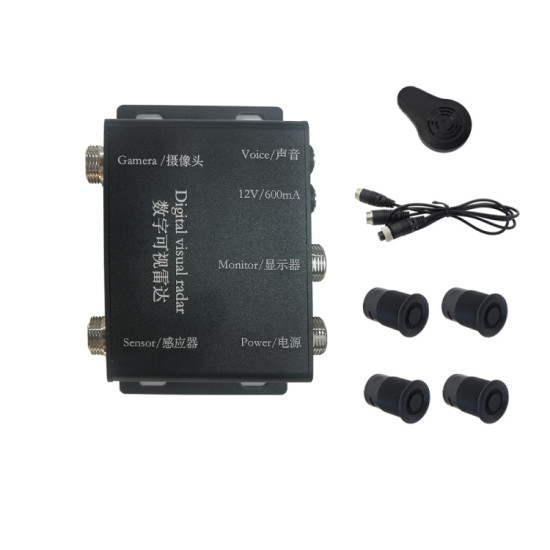

• Packing list:
• - Digital radar host x 1
• - Digital probe x 4
• - Buzzer x 1
