Product Features

• Functions
• 1. Radio frequency transmitting function
• 2. Read U disk (audio/video/picture)
• 3. Bluetooth function
• 4. Wired mobile phone screen mirroring, wired and wireless Android AUTO/iOS CarPlay
• 5. Rear view function (camera optional)
• 6. Driving recorder function (driving recorder optional)
• 7. Video output/audio output function
• 8. White light
• Basic Parameters:

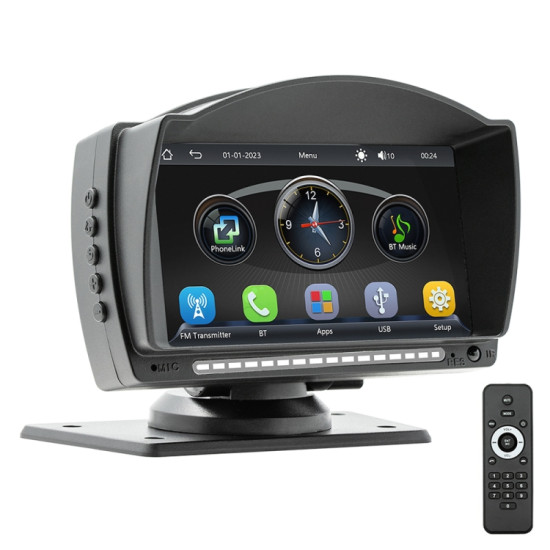

• 1. Model: B5540 Category
• 2. Type: Portable car MP5 (sunshade type)
• 3. System: Allwinner melis system
• 4. Software solution: F133
• 5. Radio transmission frequency: Default transmission frequency 88.60, 89.50, 91.50, 93.00, 93.90, 95.10 MHz (optional frequency range 87.50-108.00MHz)
• 6. Radio transmitter IC: AB5301B
• 7. Power amplifier IC: CS8571E
• 8. Output power: built-in 1W speaker
• 9. Working voltage: 12~30V
• 10. Working temperature: -10~60 degrees Celsius
• 11. Bluetooth version: version 5.0 (default name: SWL-BT)
• Performance Parameters:
• 1. CPU: F133
• 2. Running memory: 1Gbit DRAM
• 3. Display resolution: 1280x720
• 4. Screen size: 4.7 inches (IPS display)
• Size Parameters:
• 1. Installation size: 65x65mm
• 2. Case size: 126x83mm
• 3. Host depth: 25mm
• 4. Single unit weight: 0.44KG
• Function Parameter:
• 1. Mobile Internet: Supported
• 2. Reversing image: Support
• 3. Steering wheel remote control: supported
• 4. Video output: support
• 5. Driving recorder: supported (recorder optional, not included)
• 6. Built-in speaker: supported
• 7. USB interface: USB2.0 x 2
• 8. Reset button: Support
• RCA Port Parameters:
• 1. Audio output: Support (left channel + right channel)
• 2. Video output: support
• 3. Reverse video input: supported (camera optional, not included)
• AUX port & format parameters:
• 1. External microphone: supported (microphone optional)
• 2. Audio format: MP3, AAC, APE, OGG, M4A, RA, WAV
• 3. Video format: H263, H264, H265, DIVX HD, AVI, FLV, MKV, MPEG, MP4, WMV9, VC, ASF, TS, QT
• 4. Image format: JPEG, PNG, BMP, GIF, TIFF
• Other Parameters:
• 1. Languages: English, Chinese, Spanish, Portuguese, Russian, German, French, Polish, Turkish, Arabic, Hebrew, Italian, Czech, Japanese, Korean:
• 2. Factory setting password: 113266
• Accessories:
• 1. Host x 1
• 2. Instruction x 1
• 3. Cigarette lighter power cord x 1
• 4. Installation bracket x 1
• 5. Remote control x 1
• (Accessories, instructions, and packaging will be updated from time to time, subject to actual receipt of the goods)
