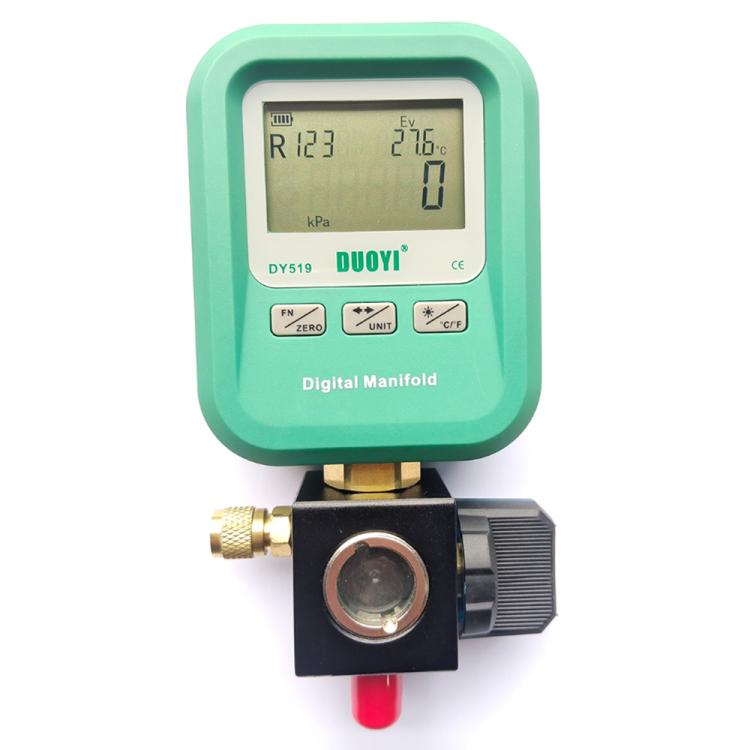

Product Features

• 1. Product functions: vacuuming/refrigerant filling/pressure maintenance and pressure measurement
• 2. Pressure test, simultaneous display of evaporation or condensation temperature readings
• 3. Pressure leak test, which can measure the initial pressure, real-time pressure, and pressure difference measured at the set test time
• 4. Vacuum operation, simultaneous display of vacuum degree and pressure readings
• 5. Built-in common refrigerant curves
• Parameters
• 1. Applicable refrigerants include 24 mainstream refrigerants: R123, R1234yf, R134A, R14, R141B, R142B, R22, R23, R290, R32, R404A, R407C, R407F, R410A, R417A, R438A, R449A, R452A, R513A, R600, R454B, R454C
• 2. Pressure test unit: Kpa, MPa, Bar, inHg, Psi, Kgf/cm2
• 3. Pressure test resolution: 1Kpa
• 4. Pressure test range: 0-6000Kpa
• 5. Vacuum test range: -101Kpa - 0Kpa
• 6. Pressure test accuracy: +/-0.5% (full scale) + 5 digits
• 7. Pressure overload limit: 10000Kpa (10Mpa; 100Bar)
• 8. Dimensions: 135x70x40mm
• 9. Weight: 450g
