Product Features

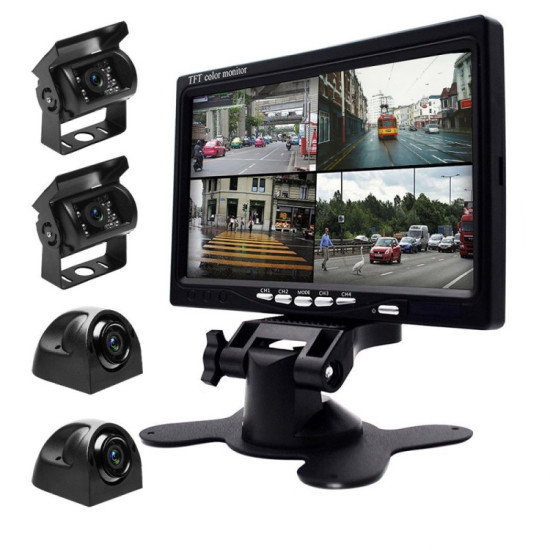

• 7 inch Color TFT LCD Monitor:
• 1. Image can be switched left and right, up and down.
• 2. Panoramic driving security system. You can see 4 direction scenery on a display outside the car.
• 3. 4 Channels input: V1/V2/V3/V4 - Screen Size: 7 inch * Housing Material: ABS
• 4. Resolution: 800 x 480 RGB
• 5. Contrast: 500 : 1
• 6. Display Mode: 16 : 9
• 7. Power Supply: DC 9-36V
• 8. Video Frequency: PAL / NTSC
• 9. Operation Temperature: -20 ~ 60 degrees
• 10. Drive scheme: MST703
• 11. Segmentation scheme: DM5858
• 12. Decoding chip:7440
• 13. Minimum illumination: 0.1LUX
• 14. Language: Japanese/Russian/German/French/Spanish/Portuguese/Italian/Chinese/English
• Car Side View Camera:
• 1. Normal viewing and NO GUIDE LINE
• 2. Chip: Color 1/4 Sharp CMOS
• 3. Format: PAL / NTSC
• 4. Resolution: PAL: 500 (H) x582 (V) / NTSC: 510 (H) x492 (V)
• 5. Horizontal: 420TV Lines
• 6. Night vision distance: 10M
• 7. SNR: more than 48dB (AGC OFF)
• 8. Operating temperature: -10 to +50 degrees RH95 % Max
• 9. Storage temperature: -25 to +60 degrees RH95 % Max
• 10. White Balance: Auto
• 11. Power supply: DC 9V-36V
• Front /Rear View Camera:
• 1. Front Camera for normal viewing and NO GUIDE LINE
• 2. Rear Camera for mirror viewing and with Guide Line
• 3. Auto IR Cut Night Vision: Built-in 18 IR LED lights, good performance in day and night.
• 4. Automatically switches to IR when light level is low. Night visible range to 30 ft.
• 5. IP68 Waterproof: High strength weatherproof lens
• 6. Image Sensor: CMOS 7030 HD Sensor
• 7. TV System: NTSC/PAL
• 8. Resolution: 420 TV lines
• 9. Video Output: RCA connector,1.0vp-p 75OHM
• 10. S/N Ratio: Better than 48db
• 11. Power Supply: DC 9V -DC 24V
• 12. Work Temperature: - 20 ~ +60 degrees
• 13. White Balance: Auto Tracing
• Package Contains:
• 1 x Quad Split Monitor
• 2 x Side View Camera
• 2 x Rear View Camera
• 4 x Video cable
• 5 x Power Cable
• 1 x Suction Cup Mount
• 1 x Dashboard Stand
• 1 x IR Remote Control
• 1 x Installation Instructions
