Product Features

• 1. Software Version V2.23; Firmware Version V7.020
• 2. Add ECU Type: Toyota 76FXXX, PSA 17.4.4, Ford E83, VW 17.5.5 (1766), Mercedes-Benz 276ECU,Toyota 76F, and so on, at least 160 more ECU Types added.
• 3. No tokens limitation
• 4. Ktag V7.020 can connect internet without damage
• 5. Multi-Language: English, Italian, German, French, Portuguese, Spanish
• 6. Support BDM Function Well, No Checksum Error.
• 7. It supports universal famous car,truck, tractor,bike.
• 8. Best PCB With Murata filters (The main program and SD card file is different from ktag v6.070)
• 9. Following details of the accessories available in car list per each group of protocols of communication
• BDM Motorola MPC5XX
• 14AS00T01S: Adapter to be soldered to the ECU
• 14AS00T02S: Cable with connector to be soldered to the ECU
• 14AS00T03S: Adapter to be soldered to the ECU
• 14AS00T04S: Adapter to be soldered to the ECU
• 14AM00T00M: Board for connection through positioning frame
• 14AM00T01M: Board for connection through positioning frame
• 14AM00T02M: Board for connection through positioning frame
• 14AM00TBAS + 14AM00TB01: Board for connection through positioning frame, with pull-out tip 14AM00TB01
• 14AM00TBAS + 14AM00TB02: Board for connection through positioning frame, with pull-out tip 14AM00TB02
• 14AM00TBAS + 14AM00TB03: Board for connection through positioning frame, with pull-out tip 14AM00TB03
• J-TAG Nexus MPC5xx
• 14AS00T05S: Adapter to be soldered to the ECU
• 14AM00T05M: Board for connection through positioning frame
• 14AM00T06M: Board for connection through positioning frame
• J-TAG RENESAS SH705xx
• 14AM00T07M: Write Board for connection through positioning frame
• 14AM00T08M: Write Board for connection through positioning frame
• 14AM00T09M: Write Board for connection through positioning frame
• 14AM00T10M: Read Board for connection through positioning frame
• 14AM00T11M: Read Board for connection through positioning frame
• BOOTLOADER
• 14P600KT04: Board for connection through positioning frame
• BOOTLOADER ST10
• 14AM00T03M: Board for connection through positioning frame
• 10. Applicable systems: WIN7 and WIN 10

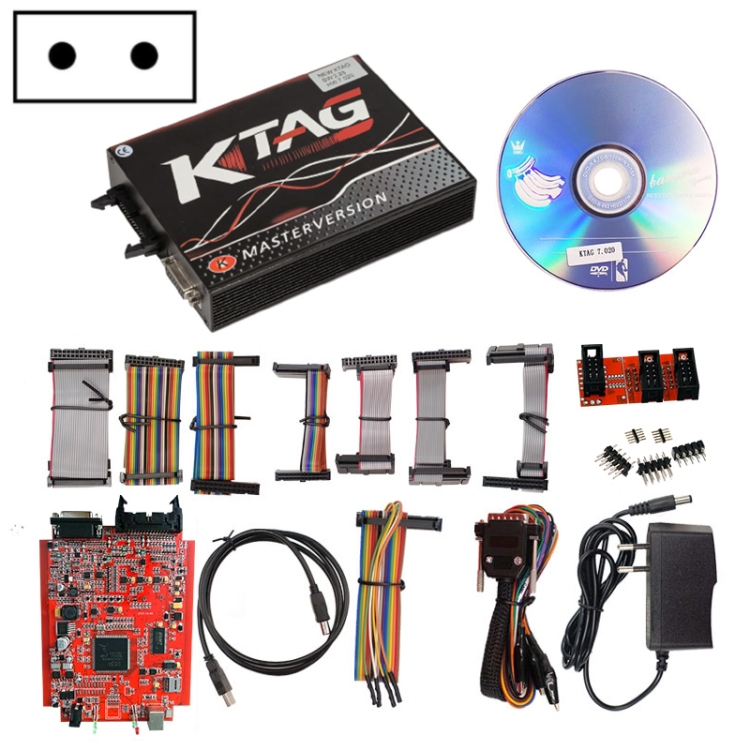

• Package List:
• 1 x Ktag V7.020 Main Unit
• 1 x 144300T 104
• 1 x 144300T 103
• 1 x 144300T 101
• 1 x 144300T 106
• 1 x 144300T 102
• 1 x 144300T 105
• 1 x 144300T 100
• 3 x Chips Inside
• 1 x Multi-Color Cable
• 1 x USB Cable
• 1 x Power Adapter
• 1 x CD
• 1 x Carton Box Outside
