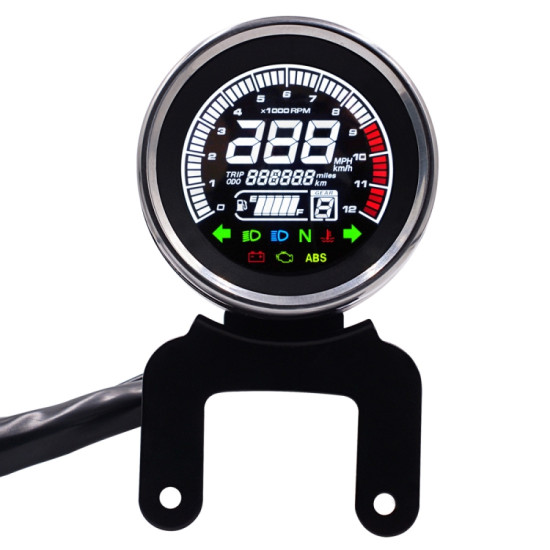

Product Features

• Feature:
• 1. Complete functions: the function includes (speedometer, tachometer, fuel gauge, water temperature gauge), the LCD screen is very clear, the viewing angle is large and the soft vision, relieve eye fatigue.
• 2. Left and right turn signals: show where the turn signals of vehicle are located. Usually in the flameout state, when the owner lights the turn signal, the indicator will light up in the corresponding direction.
• 3. Gear position (N, 1-6 gear position display function, and there is no need to add another gear positioner)
• 4. Oil quantity indicator: shows the amount of oil stored in the vehicle. When the electric door is opened and the meter performs self-test, the fuel gauge function prompts you whether you need to refuel.
• 5. High beam: display the status of the vehicle high beam, usually extinguished, when the owner turns on the high beam, the indicator light indicates that the vehicle high beam is on.
• 6. KM / H to MPH (metric system display switch)
• 7. Speedometer: Tire model 120/80/17, 34Hz means 60km/h, speed up 5%, 34Hz means 63km/h
• 8. Fuel gauge: LCD display F point 8 Ohm-E point 98 Ohm
• 9. Water temperature is lower than 165??, long indicator display
• 10. The main switch is disconnected, the standby power consumption is less than 4ma
• Button Function:
• 1. Short press the button to switch between total and subtotal.
• 2. In the total interface, press and hold the button for 4 seconds, the metric system switches, the default is in metric system; after switching, it can be saved even if it is completely powered off.
• 3. In the subtotal interface, press and hold the button for 4 seconds, and the subtotal is cleared.
• Wiring method:
• (round head line):
• 1. Black: electric switch positive pole
• 2. Red: battery positive (normally 12V positive)
• 3. Gray: 6 gear 12 Negative control, LCD display
• 4. Green: 12V negative
• 5. Blue/white: oil signal
• 6. Orange: left turn, 12V positive control, LCD display
• 7. Light blue: turn right, 12V positive control, LCD display
• 8. Black/red: speed signal input
• 9. Blue: headlights high beam, 12V positive control, liquid crystal display
• 10.Blue/yellow: ABS, liquid crystal display
• 11.Gear line group (6 line group)
• 12.Green / Red: N file, 12 negative control, LCD display
• 13.Pink: 1st gear, 12 negative control, LCD display
• 14.Blue/red: 2 files, 12 negative controls, LCD display
• 15.Green/Black: 3 files, 12 negative controls, LCD display
• 16.Yellow / red: 4 files, 12 negative control, LCD display
• 17.Yellow / white: 5 files, 12 negative control, LCD display
• 18.Brown/red: engine fault light, 12V negative control, liquid crystal display
• 19.Green/White: Water temperature signal
• Sensor wiring method (3-wire group):
• 1. Red/White: sensor positive
• 2. Green: sensor negative
• 3. Black/white: sensor signal
