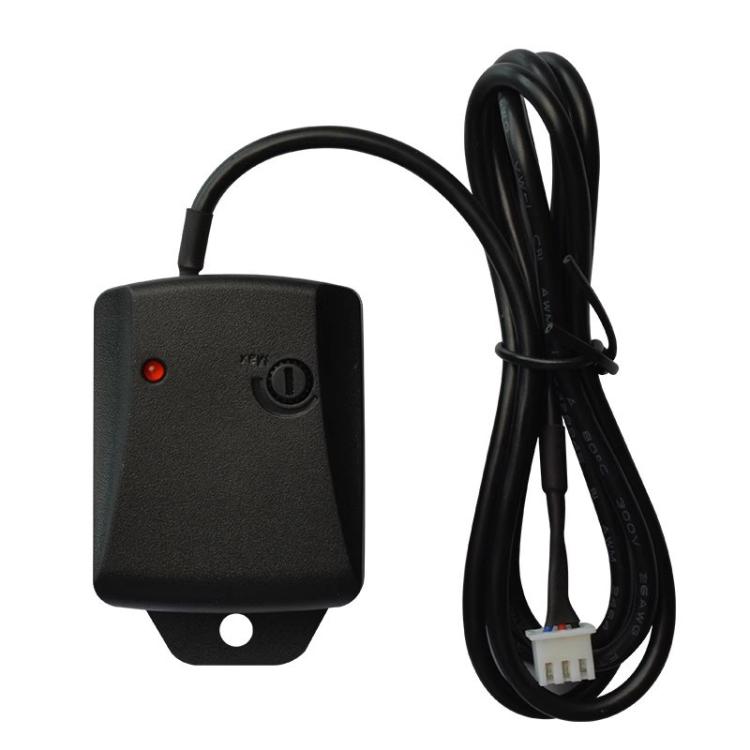

Product Features

• 1. Output current: 100mA (MAX)
• 2. Sensitivity: -105dB
• 3. Quiescent current: 6mA
• 4. Rated operating Voltage: 12V
• 5. Operating voltage: 5V (MIN)
• 6. Cable type: 1m shielded cable
• 7. Adhesive backing for easy mounting
• 8. Piezoelectric and spring sensing components for high accuracy and stable operation
• 9. Clockwise rotation increases sensitivity, counterclockwise rotation decreases sensitivity
• 10. Vibration sensing system composed of a buzzer and contact spring, offering high sensitivity, speed, and performance
• 11. Internally, a piezoelectric ceramic component and spring weight structure detects vibration signals, which are amplified and output via an op amp such as the LM358
• Pin description:
• 1. The blue wire is the signal output via the 358 op amp. It is high when there is no vibration (IO port pull-up resistor) and low when there is vibration.
• 2. Red wire: +12V power supply.
• 3. Black wire: ground.
• Pin definition:
• 1. Blue wire: signal output. Each vibration detected generates a pull-down signal for one cycle, allowing for interfacing with a microcontroller.
• 2. Black wire: ground.
• 3. Red wire: positive power supply (5-15V DC).
